Wheeled Mobile EV Charging Power Bank | 220V Outdoor Energy Storage Supply

Nombre De La Marca:	Mckee Charging Cube
Número De Modelo:	CLF-AC-3.5kWH
Cuota De Producción:	1
Precio:	Negotiate
Detalles Del Embalaje:	Embalaje en caja de madera
Condiciones De Pago:	D/A, D/P, T/T, Unión Occidental

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Luoyang, China

Certificación:

Rango de voltaje de entrada:

186‑236 VCA (Estándar: 220 VCA)

Frecuencia de entrada:

50/60HZ

voltaje de salida:

229 V (sin carga)‑216 V (carga completa) CA, estándar 220 V CA

Frecuencia de salida:

50Hz

Potencia de carga máxima:

680W

Eficiencia de transferencia:

Promedio 92%

Tamaño total:

466×230×550mm

Peso neto:

39 kg

Tamaño de embalaje:

590×390×680mm

Peso del envase:

54,7 kilos

Descripción del producto

Portable Energy Storage Power Bank Multifunctional Outdoor Emergency Power Supply

1. Product Introduction

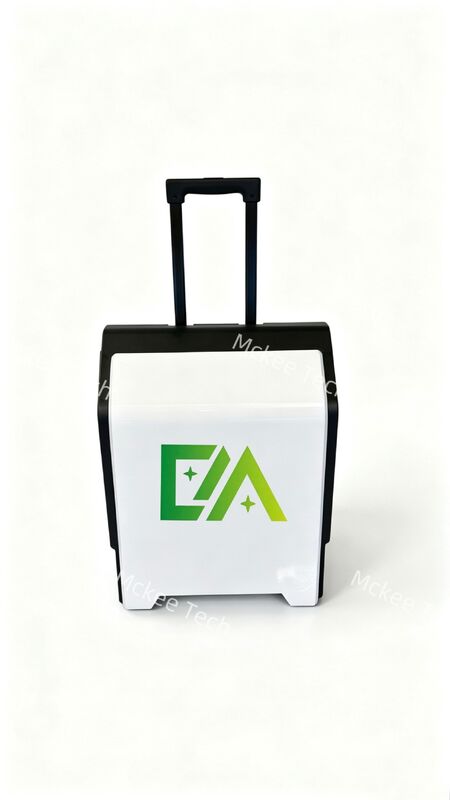

This portable pull-rod mobile car power bank is a specialized energy storage solution developed for new energy vehicle emergency charging and multi-scenario outdoor power supply. Built with mobility in mind, its wheeled pull-rod design makes it easy to transport, serving as a reliable companion for road trips, camping, and roadside rescue.

2. EV Emergency Charging

The device delivers robust EV emergency charging via a dedicated output interface, with a rated power of 3500W (peak 7000W). On average, one hour of charging adds approximately 21 kilometers of driving range, effectively resolving sudden roadside power shortages. It also features two waterproof AC inverter output ports, allowing simultaneous power supply to other electronic devices, doubling as a versatile outdoor power station.

3. Safety & Durability

Built with cylindrical 32140 LiFePO4 batteries (total capacity: 3072Wh), the power bank offers a long cycle life of over 2000 cycles with 75% capacity retention. A comprehensive BMS system provides multi-layer protection against over-current, short-circuit, overload, and over-temperature risks. The built-in cooling fan activates above 45°C, with automatic shutdown at 85°C to prevent overheating, ensuring stable and safe operation.

4. Practical Design & Compatibility

Compact in size (466×230×550mm) and weighing only 39kg, the unit is easy to store and maneuver. It includes a built-in LED light for night use, and all output interfaces are waterproof for enhanced outdoor durability. With pure sine-wave output and a wide input voltage range (186–236V), it is compatible with most household grids and electric vehicles, making it a practical all-in-one power solution.

Category	Item	Specification
AC Input	Input Voltage Range	186‑236V AC (Standard: 220V AC)
	Input Frequency	50/60Hz
	Working Efficiency	95% 220V input; 92% 110V input
Inverter Output	Output Voltage	229V(No load)‑216V(Full load) AC, Standard 220V AC
	Output Frequency	50Hz
	Output Power	Rated 3500W, Peak 7000W, Over‑power protection at 3700W
	Discharge Waveform	Pure sine wave
	Output Ripple	＜200mV
	Max Output Current	15A constant‑current charge
	Transfer Efficiency	Average 95%
	Protection	Over‑current, Short‑circuit, Over‑load, Over‑temperature auto‑protection
Lighting Function	Working Mode	LED on when cover open; LED off when cover closed
	LED Service Life	≥100,000 hours
Battery Charging	Input Voltage	186‑236V AC
	Max Charging Power	680W
	Charging Mode	Constant‑current & constant‑voltage automatic switch
	Charging Time	4h to 90% SOC, 1h to 100% SOC
	Transfer Efficiency	Average 92%
Temperature Protection	Fan Startup Temp	＞45℃
	Over‑temp Protection	Auto cut‑off when heat sink temp ＞85℃
Li‑ion Battery Pack	Rated Voltage	51.2V
	Operating Voltage	48‑57.6V
	Battery Type	Cylindrical 32140 LiFePO4 Battery
	Cycle Life	2000 cycles (75% capacity retention)
	Configuration	16S4P, Single cell 15Ah
	Total Capacity	3072Wh
	Protection	BMS hardware & software dual protection
	Over‑temp Protection	MOS＞95℃, Battery＞65℃
	Communication	No external communication
Dimension & Weight	Overall Size	466×230×550mm
	Net Weight	39kg
	Packing Size	590×390×680mm
	Packaged Weight	54.7kg

About us

Mckee is a manufacturer focusing on electric car charging stations and related electric car accessories. Committed to sustainable development since 2011, we constantly aim to adopt clean and green technologies,strive to provide safe and green energy services for human beings through technological innovation.
